00:00:06:01 - 00:00:06:16
Okay.
00:00:06:16 - 00:00:12:28
So as I've mentioned, the key to this
is having both our 2D and 3D templates.
00:00:13:15 - 00:00:15:28

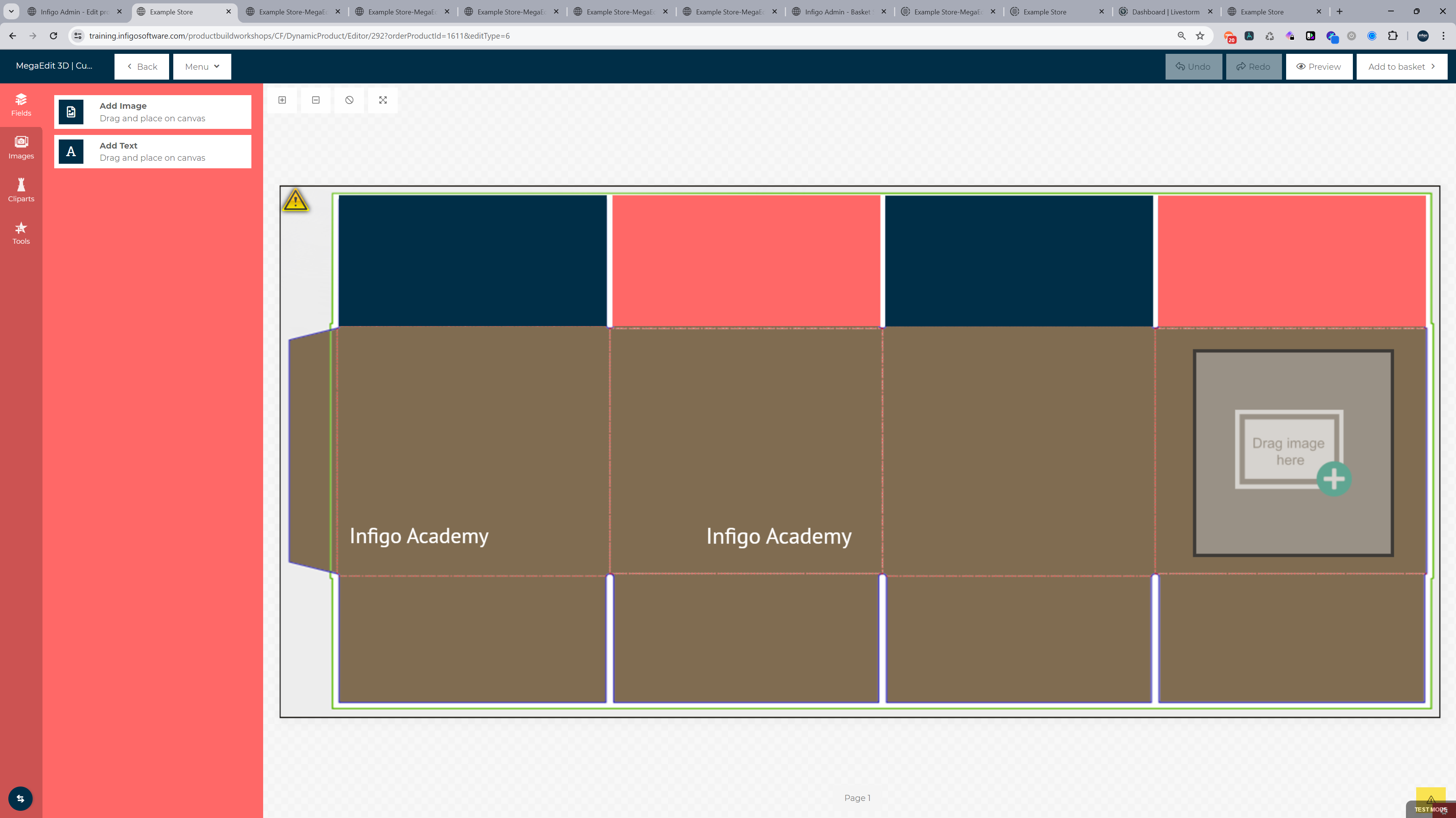

Now, your 2D template,
00:00:15:28 - 00:00:18:28
as we've seen
on many of our example products.
00:00:19:14 - 00:00:22:14
And this is my very,
very basic example here,
00:00:23:04 - 00:00:26:02
which usually I say be a product die line.
00:00:26:02 - 00:00:29:14
And this would form the main content
of your MegaEdit canvas,
00:00:29:14 - 00:00:32:23
onto which your end users
can add their own personalization.
00:00:33:25 - 00:00:38:02
Now, this 2D template allows us to ensure
that elements such as imagery and text
00:00:38:14 - 00:00:41:02
are added to the correct place
00:00:41:02 - 00:00:43:23
on the canvas relative to what we've
00:00:43:23 - 00:00:46:23
what we're going to set up inside
blender itself.
00:00:47:07 - 00:00:51:19
and this is true for both the final output
file and for the 3D preview.
00:00:52:04 - 00:00:54:01
So we want to make sure
that the ultimate aim of
00:00:54:01 - 00:00:56:03
this is to still make sure we get it,
whether
00:00:56:03 - 00:00:59:05
we end up with a relevant output file
that we can send to our printer.
00:00:59:18 - 00:01:01:06
It's not all about 3D preview,
00:01:02:18 - 00:01:04:00
so this is just for
00:01:04:00 - 00:01:07:00
making it look pretty.
00:01:09:17 - 00:01:12:17
Now, as we'll see,
00:01:12:22 - 00:01:14:29

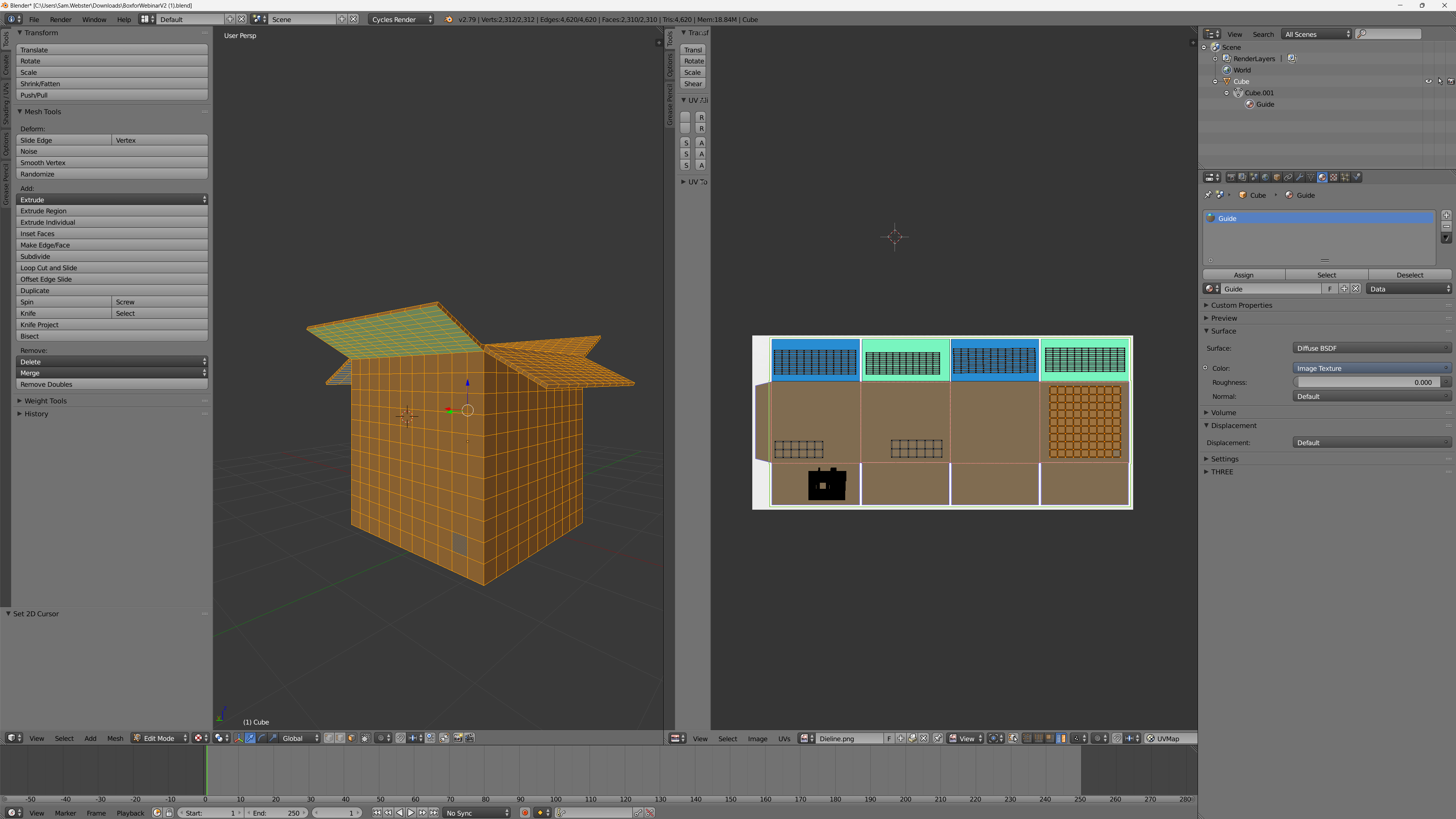

the 2D template is also used
00:01:14:29 - 00:01:20:02
within blender and is key to identifying
certain areas of the die line
00:01:20:09 - 00:01:23:09
to which slices on our 3D
model are going to be linked to.
00:01:23:11 - 00:01:24:07
So we've got this.
00:01:24:07 - 00:01:26:02
If we've got this, template here,
00:01:26:02 - 00:01:31:17
we're going to have certain areas of it
like here or here maybe where we've mapped
00:01:31:17 - 00:01:34:27
certain elements in our 3D model
to that particular
00:01:35:16 - 00:01:38:08
2D model.
00:01:38:08 - 00:01:41:02
Now what we need to remember as well
is that sometimes,
00:01:41:02 - 00:01:45:01
sometimes
our products might not lend themselves.
00:01:47:06 - 00:01:49:13
Exactly to a die line.
00:01:49:13 - 00:01:54:00
So that, hoodie we had, for
example, is a fantastic example.
00:01:54:21 - 00:01:57:21
You can't really you're not going
to really utilize a diagram for that.
00:01:58:13 - 00:02:01:15
So what you might have is and again
this is a very basic
00:02:01:15 - 00:02:05:02
example, is something like this
template here where it just gives
00:02:05:02 - 00:02:10:26
you areas to input specific things
onto your, onto your canvas.
00:02:11:20 - 00:02:14:24
Now what we've got here, for example,
is just the ability to select
00:02:14:24 - 00:02:16:00
a couple of different colors.
00:02:16:00 - 00:02:18:07
We've got an area
where we can input the image.
00:02:18:07 - 00:02:21:20
And then in theory, what that would do is
we can then click preview
00:02:21:26 - 00:02:24:29
and it would put those
in the correct places on our 3D model.
00:02:25:12 - 00:02:27:22
But again it's very model specific.
00:02:27:22 - 00:02:29:14
And this is a great example
for having something
00:02:29:14 - 00:02:33:07
hidden in the background like we had
with our hoodie where you don't actually
00:02:33:07 - 00:02:37:15
see the 2D canvas, you just
it is still there, it is still operating,
00:02:37:21 - 00:02:41:18
but you're bypassing
it as part of the product setup.
00:02:47:04 - 00:02:49:20
So I kind of touched on this before,
but please do note that
00:02:49:20 - 00:02:54:00
you don't explicitly have to have
just one die line or template.
00:02:54:10 - 00:02:58:02
So blender will let you assign
different images to different areas
00:02:58:02 - 00:02:59:18
on your 3D model.
00:02:59:18 - 00:03:02:11
because this might be more applicable
00:03:02:11 - 00:03:05:11
to your particular application.
00:03:06:25 - 00:03:08:04
However
00:03:08:04 - 00:03:11:21
or however you choose to create your die
lines or your templates, ensure
00:03:11:21 - 00:03:15:21
that you export them
with the relevant textures or coloring.
00:03:15:21 - 00:03:18:21
And again, we'll see this a bit later on.
